Backboard: 48 mm
Size: 124 x 126 x 17 mm
Net weight: 48 G
The original Japanese bridge chip: PLX PEX8112-AA66BI

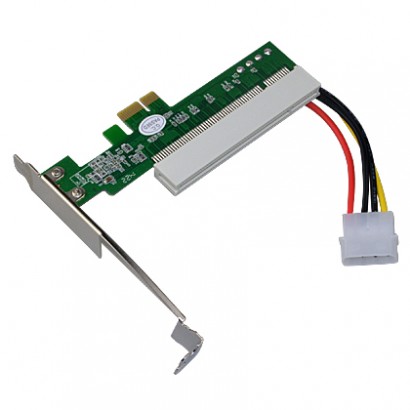

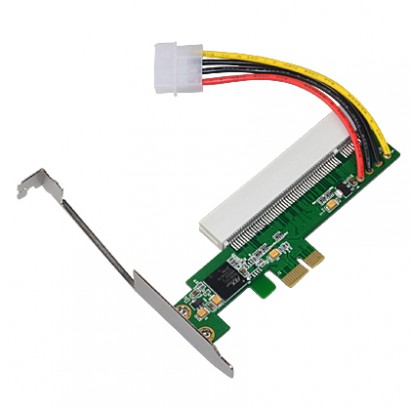

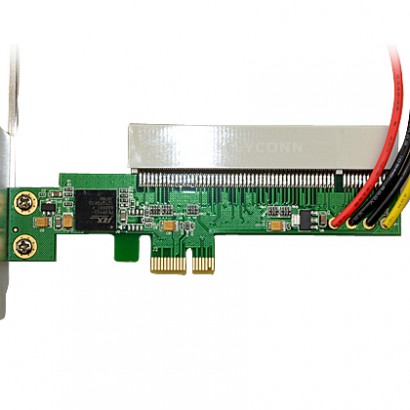

PCI-E to PCI conversion card, make the equipment with PCI interface can be used in the PCI-E motherboard.
PCIE 1X is compatible with 4X, 8X
PCI-E PCI card to solve the PCI-E requirements for PCI interface! PCI-E to PCI adapter, the true sense of the PCI card, the use of simple, good stability, plug-and-play!!
1, the PC Express X1 PCI PCI adapter.
2, the easy hot-swap installation

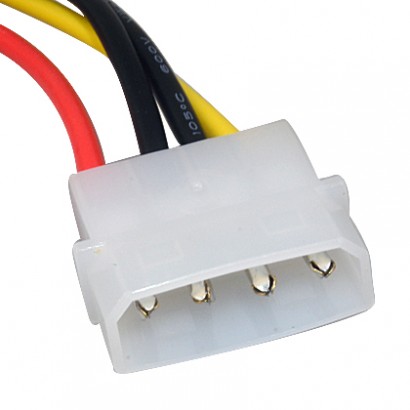

3, with 4 pin power connection (12V and 5V, there must be external power connection)

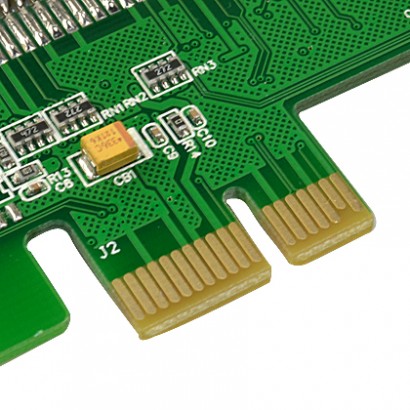

4, PCI-EX1, 2.5Gbps data transmission

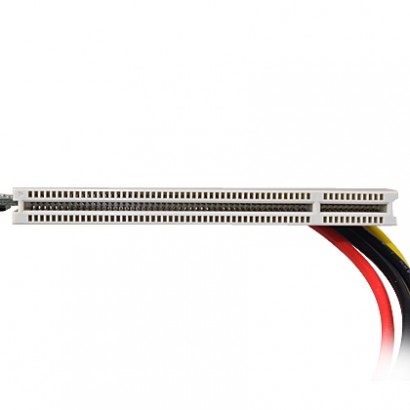

5, a PCI 32, 33MHz slot
6, according to PCI Express1.0 version
7, compatible with PCI version 2.3
8, support for PCI slot 3.3V/1A, 3.3V/100mA, 5V/5A and 12V/500mA
9, support Windows 2000/NT/2003/XP/Vista, Linux operating system
